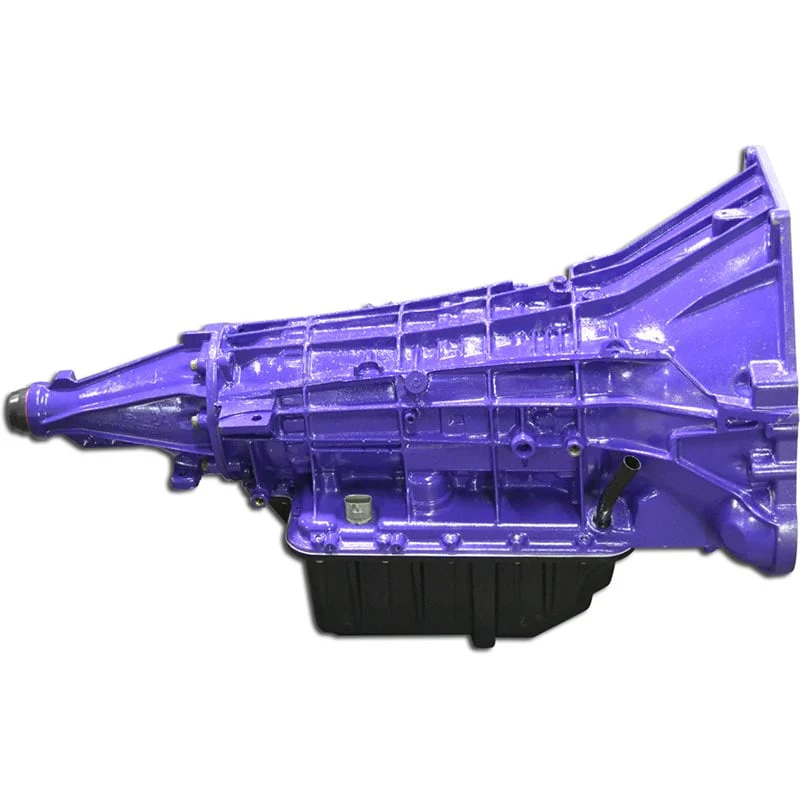

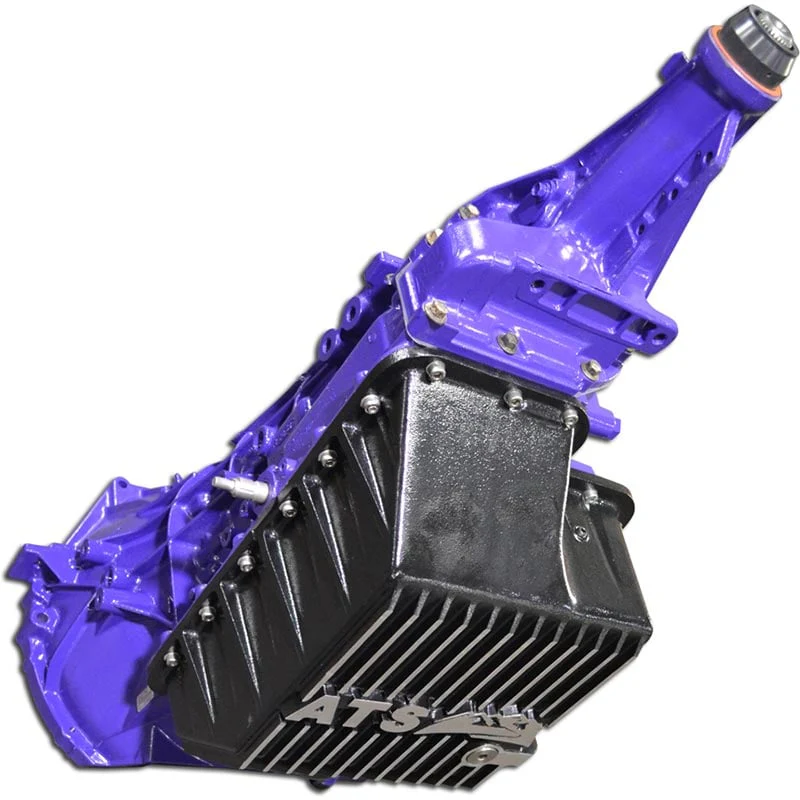

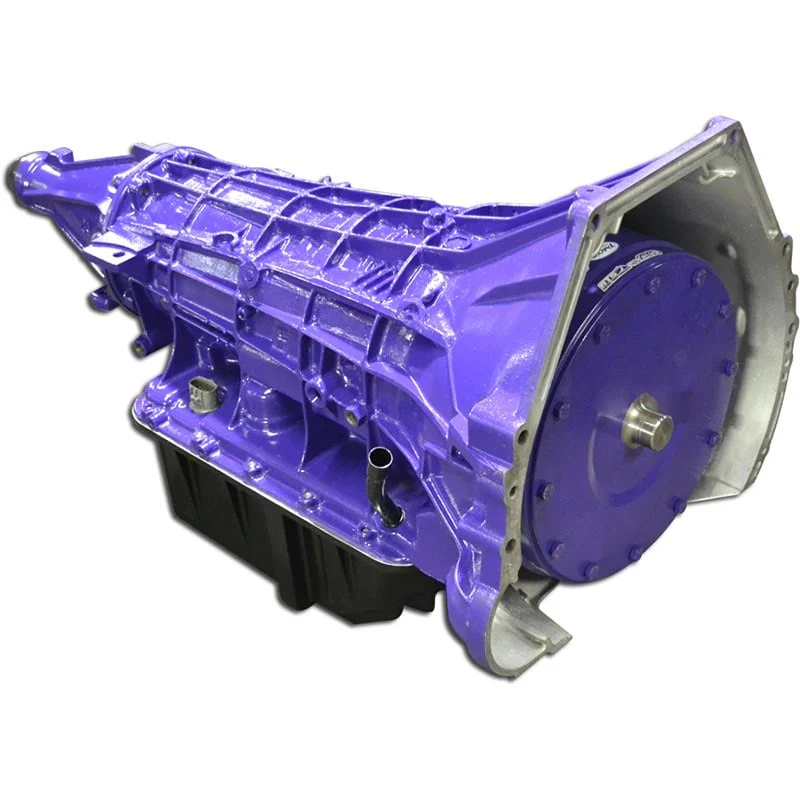

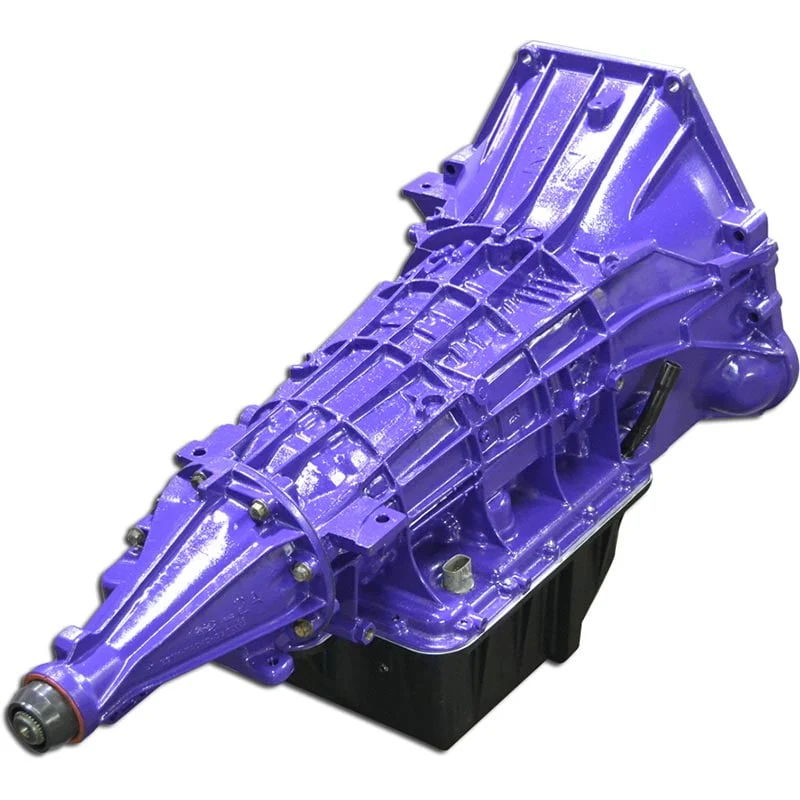

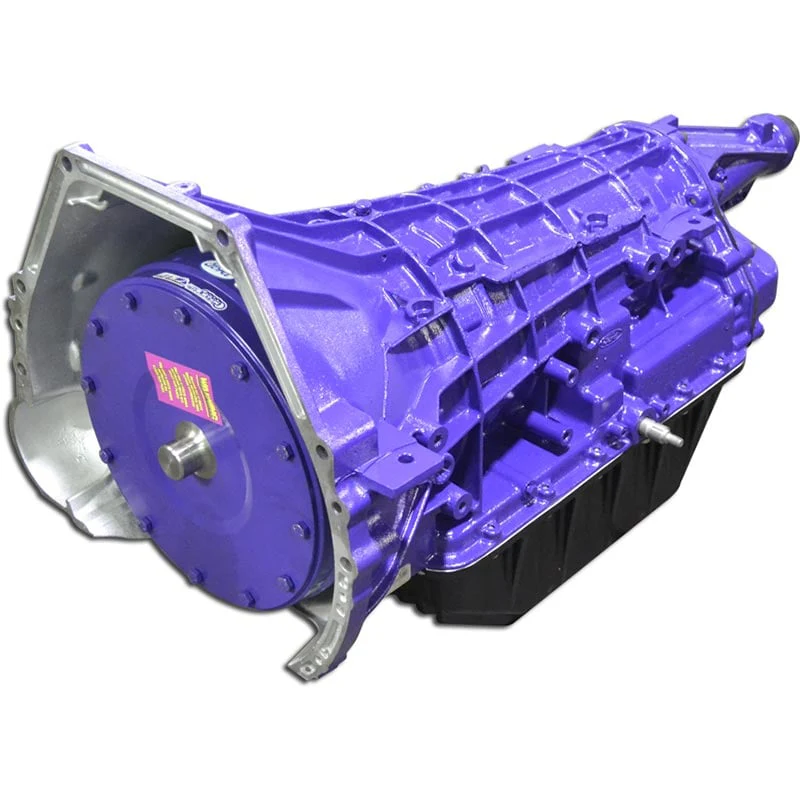

ATS Stage 3 Transmission Package 08-10 6.4L Ford Powerstroke 5R110

The factory Ford 5R110 suffers from weak points in the converter, clutch pack assemblies, valve body and line pressure limitations. These weaknesses arise when the motor's power is increased or in towing applications. ATS addressed these concerns by re-designing the torque converter, transmission pump, valve body and clutch packs. The result is a solid transmission setup to meet the demands of your Ford Super Duty. Ensure that the power of your Powerstroke is getting to the ground with an ATS Transmission Package.

By increasing the line pressure, clutch pack surface area and modifying the valve body, the 5R110 becomes a consistent, responsive and dependable transmission. The Stage 3 adds a billet 300M input shaft and billet flex plate. As power increases over 400hp, or considerable weight will be towed, the input shaft and flex plate take the brunt of it. The ATS billet components are designed to withstand extreme torque, converter lock-up sooner than stock, and competition and towing use. The ATS Stage 3 5R110 is designed for trucks that see daily driving and towing duties, aggressive tuning, and a modified turbo and/or injectors.

SHIPPING POLICY - Due to the size and weight of transmissions, they cannot be shipped through traditional couriers, such as UPS, FedEx, USPS, etc. and MUST be shipped via truck freight. We do not offer free shipping on transmissions, however, we do offer a very competitive rate charged at checkout checkout. Once your core transmission is ready for pick up, you just need to give us a call or send us an e-mail with your original order number and the core tag on the transmission, and we can supply you with a quote on the return shipping as that is not covered in the original shipping cost. Otherwise, we give you the option to coordinate the return shipping on your own and independently pay your courier of choice. As always, if you have any questions, give us a call or send us an e-mail.

ATS 5R110 Transmission Package Stage Build Comparison

	Stage 1	Stage 2	Stage 3
Horsepower Rating	500 hp	600 hp	700 hp
ATS 5R110 Transmission	✅	✅	✅
Five-Star Torque Converter	✅	✅	✅
Deep Pan Transmission Pan	✅	✅	✅
Billet Input Shaft		✅	✅
Billet Flex Plate			✅
