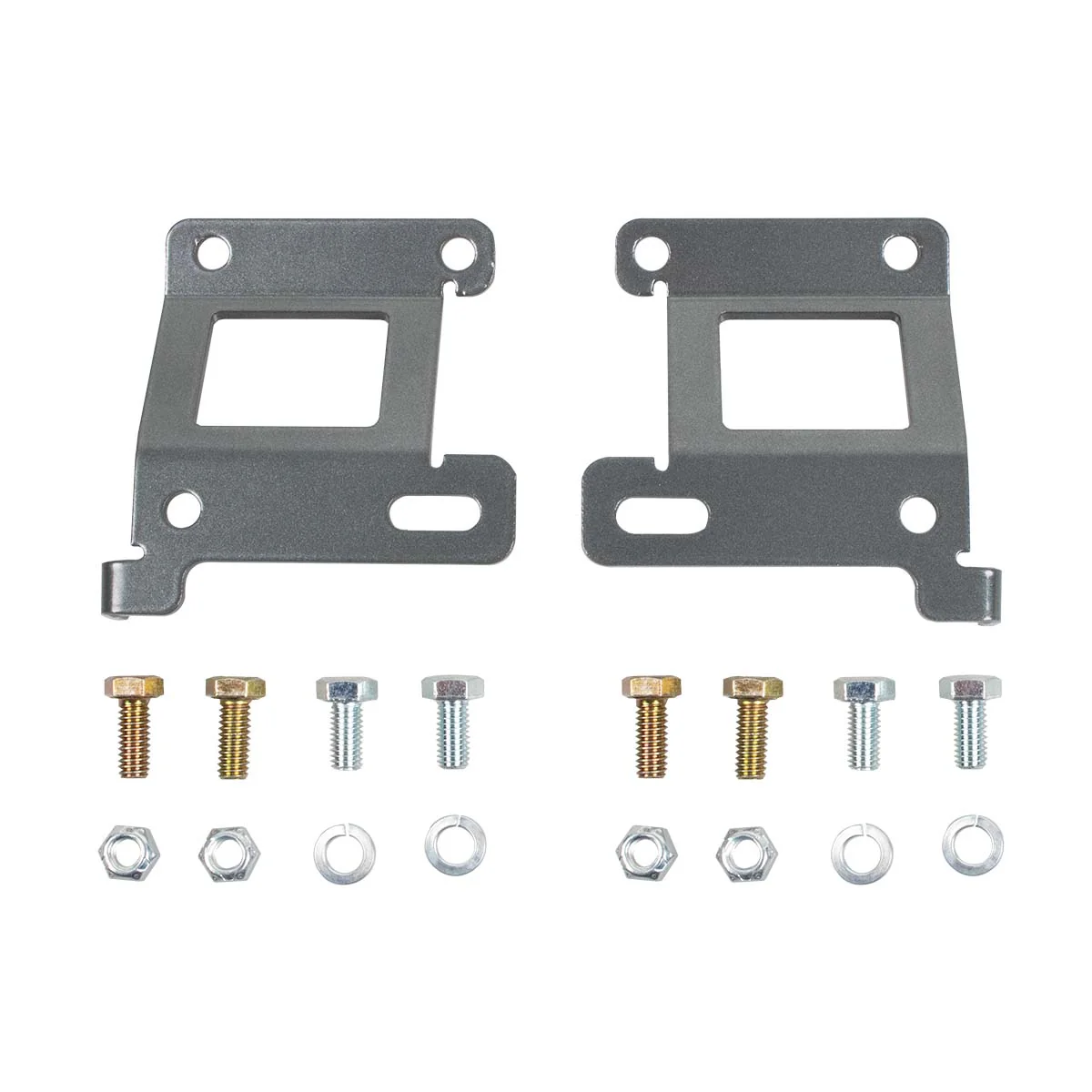

Synergy Manufacturing Brake Line Relocation Bracket Set 11-25 Ford F-250/F-350 4x4

The Synergy Ford Super Duty F-250 / F-350 brake line relocation brackets are highly recommended when lifting or leveling your truck up to 2.5”. This relocation bracket raises the stock brake line bracket 2.5”. This bracket allows you to keep your factory brake line when used in conjunction with the Synergy Leveling Kit. When leveling your Super Duty, the increased height and down travel will over extend the stock brake line, leading to possible damage and brake system failure. By relocating the factory brake line bracket up, the suspension can safely handle a shock with an extended length of 24”. By utilizing these brackets, the factory brake lines and associated ABS clips can be retained. Furthermore, you do not need to open the factory brake system, minimizing mess from brake fluid and possible air bubbles in the brake system.

Fitments:

    2011+ Ford Super Duty F-250 4x4
    2011+ Ford Super Duty F-350 4x4

Benefits:

    Allows for increased suspension droop
    Raises factory brake line bracket 2.5”
    Provisions for factory vacuum lines
    No modifications required to install
    No need to bleed brakes or open brake system

Features:

    Laser cut and CNC bent
    Zinc plated for corrosion protection

Notes:

    Compatible with the 2.5 inch Leveling Kit
    Cannot be used above 2.5” of lift height
    Only compatible with 4x4 front axle
    Shock extended length cannot exceed 24”
