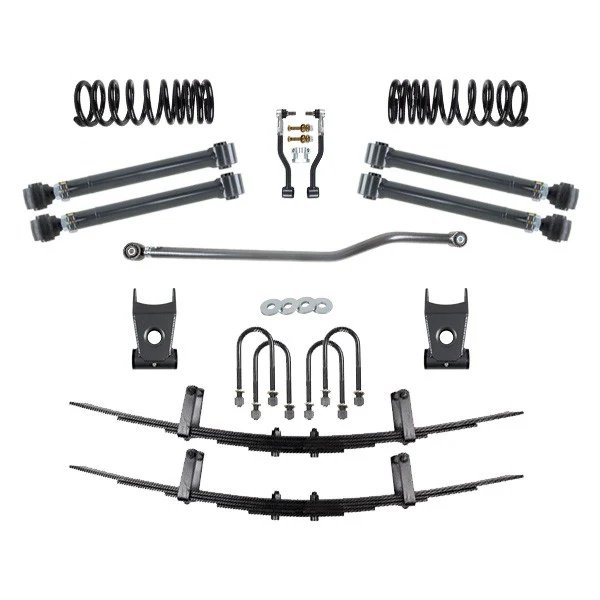

Synergy Manufacturing 3" Pre-Run Suspension System 03-13 Ram 2500/3500

Synergy MFG Suspension Systems use a synergistic approach, meaning the combined effect of the components is greater than the sum of the individual parts. The overall performance of the system is the most important factor when we are designing components to work together. Synergy MFG Suspension Systems are complete systems for your vehicle and include all necessary components for the lift height and performance advertised.

Engineered and manufactured in the U.S.A, the Pre-Run System is available for 03-13 Dodge 1500 Mega-cab 4x4, 2500 4x4, 3500 4x4 and will lift the truck 3.0". The Synergy Pre-Run Suspension System accommodates up to 37" tall tires.

Fitments:

• 2006-2008 Dodge Ram 1500 Mega-cab 4x4
• 2003-2013 Dodge Ram 2500 4x4
• 2003-2013.5 Dodge Ram 3500 4x4
• Warning: 2013 Dodge Ram 3500's were a split year for production.

Benefits:

• Progressive wound coil spring manufactured using the latest in CNC hot winding technology for optimized on and off road performance.
• Heavy duty sway-bar links for the correct sway bar geometry and maximized stability.
• Heavy duty rear shackles provide a minimal amount of lift while keeping the rear driveline angles correct.
• Rear add-a-leaf pack is a progressive 5 leaf design that replaces the factory overload spring for improved ride quality both on and off road.
• Cam Bolt Eliminator Kit takes the place of stock control arm cam bolts when upgrading to adjustable control arms.

Features:

• Heavy duty front track bar made from high quality 1.5" x .250" wall 1026 DOM tubing allows centering of front axle when running a suspension lift
• Lower adjustable control arms are manufactured from high quality crush resistant 1.75" X .188" Wall 1026 DOM tubing
• Upper adjustable control arms are manufactured from high quality crush resistant 1.50" X .156" Wall 1026 DOM tubing
• Suspension components features an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm and track bar length without removal

Notes:

• When using stock Dodge wheels, we recommend a 1.5" wheel spacer
• Due to the additional weight of megacab truck configurations, we recommend all gas megacab trucks use Heavy Duty (HD) front coil springs instead of Light Duty (LD) front coil springs. LD front coil springs will give less lift than advertised

Shock Options:

• 985-24-019    Performance Series 2.0 Smooth Body IFP Shock    Front    4WD    2.5-3.5"
• 980-24-943    Performance Series 2.0 Smooth Body IFP Shock    Rear    4WD    0-1.5"
• 985-24-021    Performance Series 2.0 Smooth Body Reservoir Shock    Front    4WD    2.5-3.5"
• 980-24-945    Performance Series 2.0 Smooth Body Reservoir Shock    Rear    4WD    0-1.5"
• 985-26-021    Performance Series 2.0 Smooth Body Reservoir Shock - Adjustable    Front    4WD    2.5-3.5"
• 980-26-945    Performance Series 2.0 Smooth Body Reservoir Shock - Adjustable    Rear    4WD    0-1.5"
• 883-24-023    Factory Race Series 2.5 Reservoir Shock (Pair)    Front    4WD    2.5-3.5"
• 883-24-022    Factory Race Series 2.5 Reservoir Shock (Pair)    Rear    4WD    0-1.5"
• 883-26-023    Factory Race Series 2.5 Reservoir Shock (Pair) - Adjustable    Front    4WD    2.5-3.5"
• 883-26-022    Factory Race Series 2.5 Reservoir Shock (Pair) - Adjustable    Rear    4WD    0-1.5"
