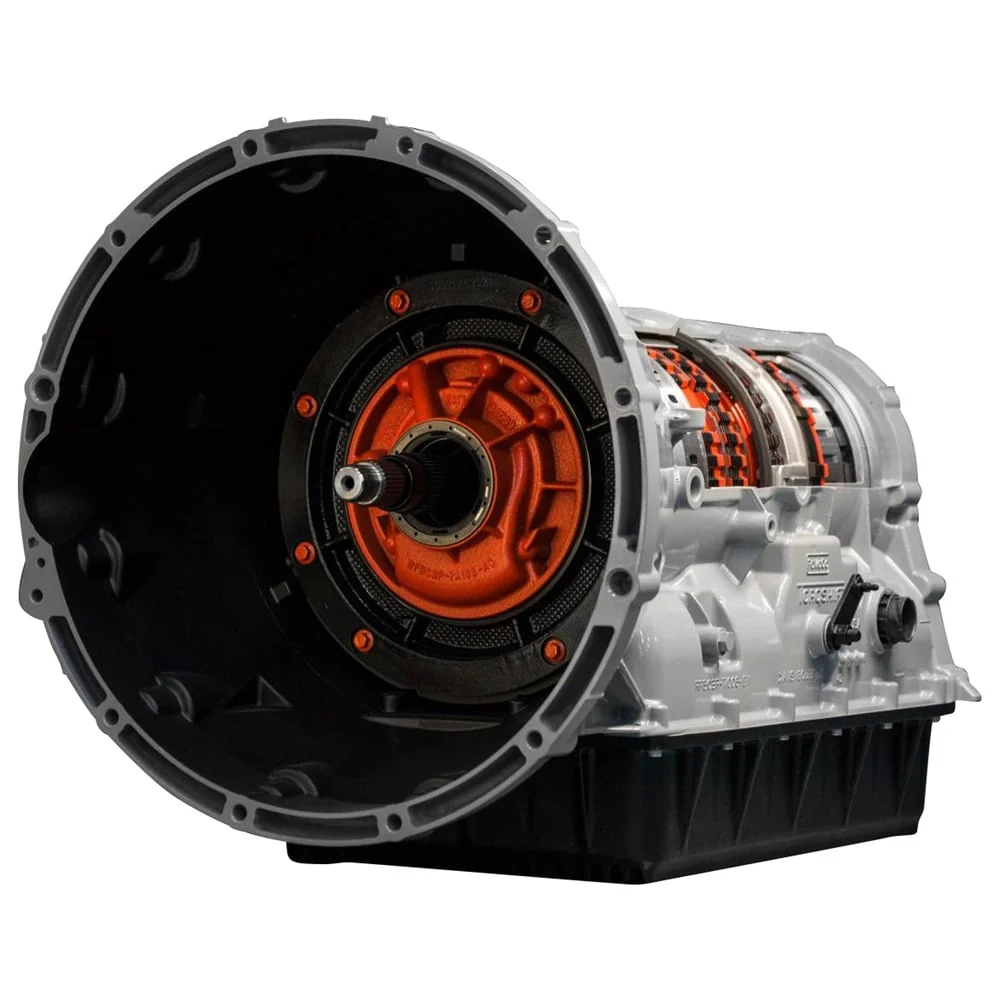

SunCoast 500HP Category 1 6R140 Transmission with Converter 17-19 Ford 6.7L Powerstroke
While the 6R140 is one of Ford's better transmissions, the 2011-2019 6.7L Powerstroke auto boxes do suffer failure, as any part would. For those looking to replace the factory transmission with something robust, but not focused on race level performance, the SunCoast Category 1 6R140 Transmission is a fantastic answer for non-modified trucks that are looking to increase reliability and longevity.
Addressing a common factory failure point, SunCoast includes a new filter kit and pump bearing in the Category 1 6R140. The factory pump often encounters a loss of lubrication pressure at the hub support pump bearing. While it's usually a failed seal that leads to the issue, once the bearing fails, catastrophic transmission failure follows shortly after. Trust the experts at SunCoast with a transmission that won't leave you on the side of the road.
The Category 1 Transmissions are upgraded with SunCoast's custom
clutch set. Every SunCoast 6R140 receives a custom 4-5-6 and
3-5-R clutch pack utilizing custom pistons and apply plates to ensure
clean, accurate, and consistent shifts. SunCoast is an American company,
doing work in America since 1989. They've taken years of research and
development to give you confidence in a reliable transmission for towing
and normal operations. As a matter of fact, they carry a 3-year
unlimited mile warranty on their Category series transmission.
The Ford 6R140 Torqshift transmission is one of the most robust transmissions Ford has yet to build. This unit was designed and manufactured exclusively by the Ford Motor Company. First and foremost, Ford opted to incorporate a robust one-piece bell housing design for the all new 6R140. This single piece design is not only strong but adds a tremendous amount of rigidity to the case reducing torsional flex. The transmission features a very deep first gear great for towing paired with double overdrive for excellent fuel economy. This unit has a total of six forward gears with the ratios as follows: 1st gear 3.974:1, 2nd gear 2.318:1, 3rd gear 1.516:1, 4th gear 1.149:1, 5th gear 0.858:1, 6th gear 0.674:1.
For maximum efficiency, the patented Lepelletier geartrain reduces complexities that exist in connecting an automatic transmission's gear sets and clutches. Simply put, the 6R140 uses a simple gearset to drive a Ravigneaux gearset. As a result of the in-depth development, the transmission uses only five clutch sets to achieve six forward gears. The 6R140 is further strengthened by the utilization of a powder-metal carrier within the compound Ravigneaux planetary gearset which is a double planetary gearset. The carrier is made up of four pressed components, which are sinter-brazed together to form a rigid, dense structure.
Included for the torque converter in the 6R140 is an exclusive long
travel, ultra-high-capacity turbine damper designed to soften the
extreme force produced by the new 6.7L Powerstroke. At SunCoast, they've
already improved upon this converter, launching their own line of
Torque converters with a variety of stall speeds.
