PMF Suspension OEM Replacement Fabricated Coil Buckets 05-22 Ford F-250/F-350 SuperDuty
The Ford Super Duty is built to take abuse, but factory coil buckets are a known weak point when trucks are pushed hard off-road, run oversized suspension setups, or involved in collisions. When stock buckets bend or deform, suspension geometry and ride quality suffer. PMF Replacement Fabricated Coil Buckets are engineered to eliminate that problem with a significantly stronger, more versatile solution.

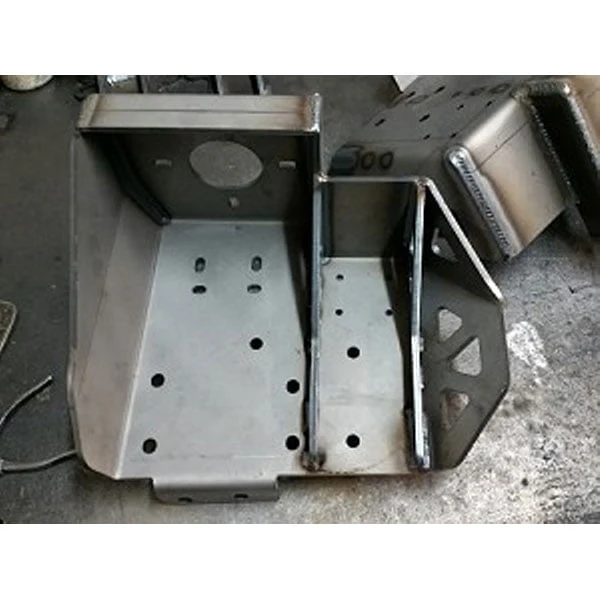

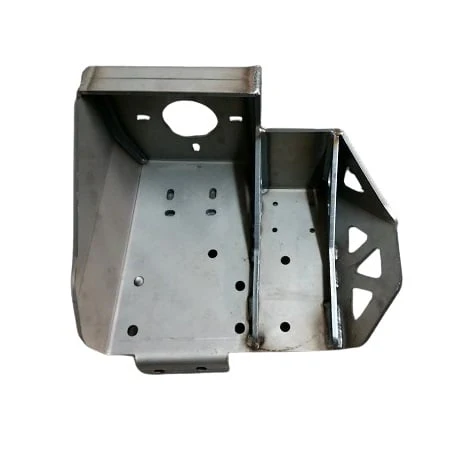

These buckets are CNC formed from 1/4" laser-cut steel plate and designed to closely match OEM 4x4 coil bucket dimensions while dramatically increasing strength and rigidity. The result is a heavy-duty replacement that bolts in like factory but offers the flexibility needed for modern suspension setups. They’re an ideal upgrade for Super Duty trucks or for older models converting to newer axle and coil spring configurations.
PMF’s modular design allows the buckets to be configured for either coil spring or coilover use, with the mounting style changed by simply removing four bolts. These buckets support factory-style stem mount shocks or eyelet-style shocks and bypass shocks up to 3.0" diameter. Three separate mounting locations are provided for stem-style shocks, while an integrated adjustable track allows eyelet-style shocks to be positioned vertically for optimized travel and performance.
Optional adjustable eyelet shock tabs bolt directly into the rear track and accept shocks with a 1/2" mounting bolt. The adjustable height allows precise shock placement to match stroke length and suspension travel. Without these tabs installed, a factory-style stem mount shock is required.
Available in bare steel or powder-coated finish, these buckets include all required Grade 8 mounting hardware and are proudly manufactured in the USA.
FEATURES & BENEFITS:
- CNC formed from 1/4" laser-cut steel for maximum strength
- OEM-style fitment with significantly increased durability
- Convertible coil or coilover mounting system
- Supports stem mount or eyelet-style shocks and bypass shocks up to 3.0"
- Three stem shock mounting locations
- Adjustable eyelet shock track for optimized shock travel
- Grade 8 mounting hardware included
- Available in bare steel or powder-coated finish
- Made in the USA
Original: $649.00
-70%$649.00
$194.70
Description
The Ford Super Duty is built to take abuse, but factory coil buckets are a known weak point when trucks are pushed hard off-road, run oversized suspension setups, or involved in collisions. When stock buckets bend or deform, suspension geometry and ride quality suffer. PMF Replacement Fabricated Coil Buckets are engineered to eliminate that problem with a significantly stronger, more versatile solution.
These buckets are CNC formed from 1/4" laser-cut steel plate and designed to closely match OEM 4x4 coil bucket dimensions while dramatically increasing strength and rigidity. The result is a heavy-duty replacement that bolts in like factory but offers the flexibility needed for modern suspension setups. They’re an ideal upgrade for Super Duty trucks or for older models converting to newer axle and coil spring configurations.
PMF’s modular design allows the buckets to be configured for either coil spring or coilover use, with the mounting style changed by simply removing four bolts. These buckets support factory-style stem mount shocks or eyelet-style shocks and bypass shocks up to 3.0" diameter. Three separate mounting locations are provided for stem-style shocks, while an integrated adjustable track allows eyelet-style shocks to be positioned vertically for optimized travel and performance.
Optional adjustable eyelet shock tabs bolt directly into the rear track and accept shocks with a 1/2" mounting bolt. The adjustable height allows precise shock placement to match stroke length and suspension travel. Without these tabs installed, a factory-style stem mount shock is required.
Available in bare steel or powder-coated finish, these buckets include all required Grade 8 mounting hardware and are proudly manufactured in the USA.
FEATURES & BENEFITS:
- CNC formed from 1/4" laser-cut steel for maximum strength
- OEM-style fitment with significantly increased durability
- Convertible coil or coilover mounting system
- Supports stem mount or eyelet-style shocks and bypass shocks up to 3.0"
- Three stem shock mounting locations
- Adjustable eyelet shock track for optimized shock travel
- Grade 8 mounting hardware included
- Available in bare steel or powder-coated finish
- Made in the USA
