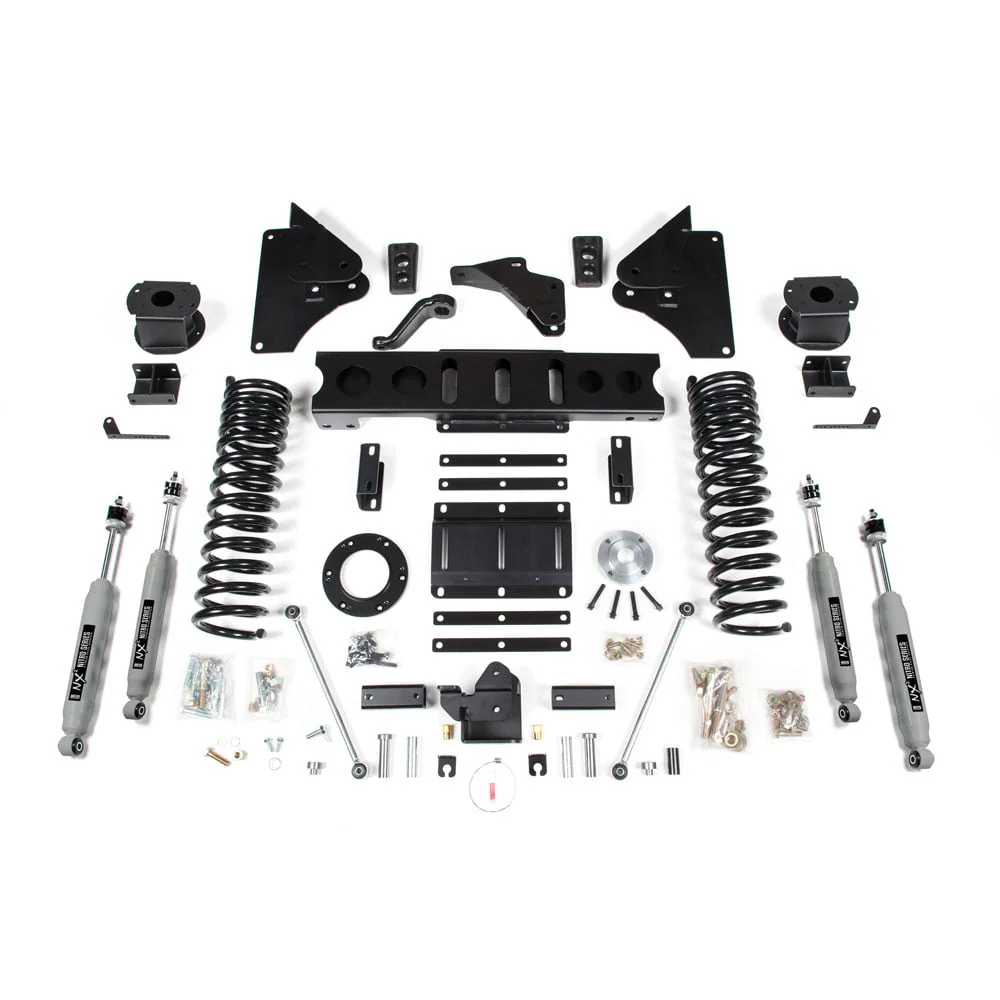

BDS Suspension 6" Lift Kit 14-18 Ram 6.7L Cummins 2500 w/Factory Air
BDS has long built a standard of quality suspension kit for just about every modern truck in any configuration. They've done it again with the 14-18 Ram trucks wanting 6 inches of lift. Many different options are available for these lift kits to fine tune and customize to your needs.
The front height comes from a pair of specially designed progressive rate ProRide coil springs. The 6" coils have been engineered and tested to improve the ride quality and performance across all terrains while holding up to the rigors that 3/4-ton truck owners demand. A heavy duty track bar relocation bracket is included to recenter the front axle once lifted as well as a forged drop pitman arm to correct steering angles. Sway bar relocation brackets are used to reposition the front sway bar assembly and the supplied brake line brackets allow for the easy adjustment for the stock lines to be reused with the lift kit.
Front Suspension Arm Options
4 Link Long Arms - The heart of this system is the 4-link conversion that replaces the factory radius arm. Key benefits include to doing this include increased stability, wheel travel, and improved handling across all terrains. The 4-link design limits caster change to less than 1-degree of change throughout wheel travel for better handling, steering control, and overall driveability. Included are a pair of massive frame-mounted brackets precision welded and engineered to locate the new upper and lower control arms to create the optimal suspension geometry for late model RAM trucks. The 4-link brackets are fabricated from 1/4" thick steel and wrap around the frame as well as the factory radius arm brackets to create an extremely sturdy mount for the new arms. Removal of the factory radius arm brackets is not required and allow the brackets to stay intact to speed up the installation time and make these kits reversible. The upper and lower control arms are built from 2" OD x 3/16" wall DOM tubing for the strength to take any abuse you can throw at them. They utilize large 2.5" OD polyurethane bushings to isolate road vibrations and are formed inward to allow for extra tire clearance while repositioning the front axle slightly forward for increase tire clearance to the backside of the front fenders when turned. These arms are finished in a durable textured black powder coating and use grease fittings for easy servicing.
Radius Arms - The 6" Radius Arm Drop System uses a pair of 1/4" thick steel radius arm relocation brackets to reposition the factory radius arms and correct suspension geometry and caster at 6" of lift. These brackets are designed for quick installation and create a stout mounting location for the radius arms by tying into both the factory radius arm frame mount and the side of the frame rails.
With the redesigned front end on 2014+ 2500 trucks, the 6" lift requires transmission/transfer case relocation components to allow the front driveshaft to function properly. BDS includes a new laser cut transmission crossmember and adjustable transmission mounting plate to increase clearance. The transfer case is repositioned by way of a supplied indexing ring kit to correct the operating angle and allow you to reinstall your factory driveshafts.
In the rear, 1/4" steel, 5" tall gusseted air bag spacers are used along with a rear track bar bracket to correct axle positioning, extended length sway bar links, and bump stop extensions. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX2 series or FOX 2.0 shocks.
Sway Bar Disconnects
This kit allows a standard Ram heavy-duty trucks to enjoy the added articulation of a disconnected sway bar. The new sway bar links are made from 7/8" solid steel bar and feature greaseable, high-misalignment polyurethane bushings. All mounting hardware is included for simple, bolt on installatio
Front Adjustable HD Track Bar
These new track bars are a massive upgrade to the factory unit, constructed from 1-3/8? solid steel stock reinforced with gusseted ends to handle whatever on-road and off-road abuse you can through at it. Adjustments are made at the 1-3/8?-12 fine threaded center turnbuckle with pinchbolt ends to allow easy tuning to properly recenter the front axle for a range of lift heights. The track bar is formed for proper clearance around critical front end components and is designed to easy installation without the need to clearance the factory frame and axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability. Parts come with a high quality textured black powdercoat finish for a great look and excellent corrosion resistance. The are designed for use on 0-3" of lift and can be used in combination with most aftermarket track bar brackets to be used on taller lift heights.
Carrier Bearing Drop Kit
The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware. For all 3"+ Lift Kits.
Rear Adjustable HD Track Bar
Upgrade your system with our heavy duty adjustable rear track bar to allow quick and precise tuning ability for re-centering the rear axle. In addition to the improvements in strength and adjustablility compared to the stock track bar, it also provides better control of the rear axle by replacing the soft factory rubber bushings with high durometer polyurethane at the frame and a forged COM bearing joint at the axle. Both ends are rebuildable and the poly bushings are greaseable. Can be used with or without track bar relocation when needed for heights of 0-8".
Stainless Steel Braided Brake Lines
Kevlar lined Stainless Steel Braided Brake Lines. Virtually no volumetric expansion Firmer brake pedal feel with less pedal effort. Hose assemblies comply with D.O.T. Federal regulations (MVSS-106) Legal for street use in all 50 States. Teflon inner core (chemically inert) Approved for use with all brake fluids, including D.O.T. 5 Silicone. Resists moisture, Very flexible. Five layer construction Rugged construction that resists road shock and hazards. Higher fitting pull-off than other D.O.T. assemblies. Standard SAE female fittings and ends Utilizes standard brake fittings and hardware.
