BDS Suspension 4" Radius Arm Lift Kit 19-24 Ram 6.7L Cummins 2500 w/Factory Air

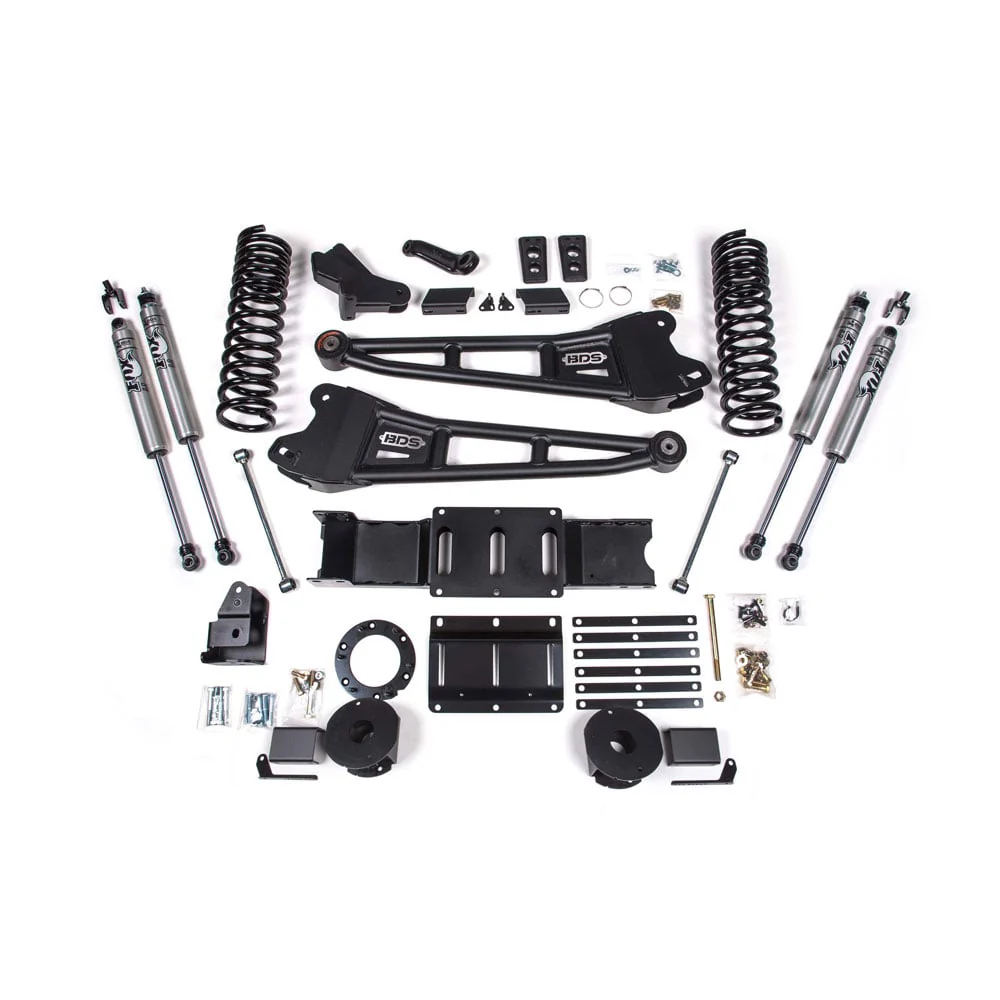

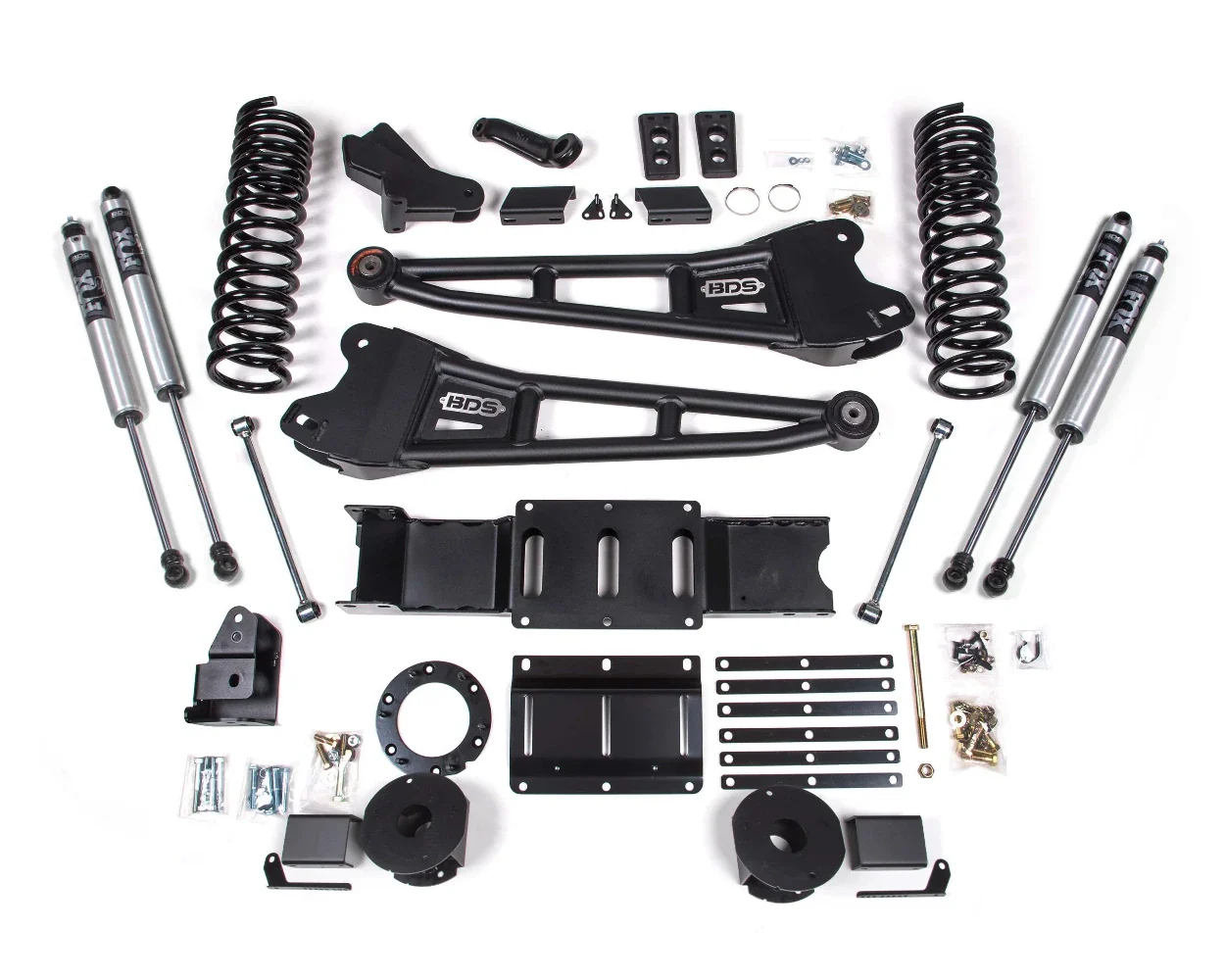

If you're looking for a suspension upgrade for your 2019+ Ram 2500 with factory rear air suspension, this system from BDS Suspension is built not only to give you additional lift but also additional performance. These kits have been engineered for improved on-road comfort and offroad capability. Kits include high strength tubular radius arms, front and rear progressive rate coil springs, your choice of shocks, and steering correction, allowing clearance for up to 37" tires. As with all BDS Suspension systems these new 4" radius arm systems are backed by Factory Protection Plus for peace of mind wherever you choose to explore.
Up front these systems use a pair of progressive rate 4" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar along with extended polyurethane bump stops to correctly limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms are supplied to bolt in place of the factory arms. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.
At 4" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. In the rear, heavy duty air bag spacer brackets are used to level the stance along with a rear track bar bracket to correct axle positioning, extended length sway bar links, and bump stop extensions. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX2 series or FOX 2.0 shocks. Get the look and the ride you are after with these ne
As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these new 4" radius arm systems from BDS Suspension.
Shock Options:
Choose between custom valved BDS NX2 series or Fox 2.0 series gas charged monotube shocks to outfit the front and rear of your Ram.
NX2 Nitro Series - BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen charged, twin tube design with 10-stage velocity sensitive valving for lightning fast dampening and superior control.
This results in: increased stability for improved handling, longer front end and tire life, less nose dive on severe braking, less squat on hard acceleration, smoother ride control without harshness.
FOX 2.0 Performance Series - FOX 2.0 Performance series shocks have been tuned and tested by both Fox and BDS Suspension to maximize performance specific to each application and to every BDS Suspension system. The basic shock design is based on proven Fox Racing Shox race products, but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck or jeep, whether on or off the road.
Steering Stabilizer Options:
- Single NX2 Nitro: Are you worried about your steering control? NX2 Nitro Steering Stabilizer is designed to be a high-end performance shock at an affordable price. Built with a durable metallic finish, a large fluon-banded piston, and self-lubricating seals this stabilizer is tough enough to last but tuned with vehicle-specific valving to give you amazing control. Built with both the morning commute and some light off-roading in mind, keep stress out of your steer and install one of these today!
Front Adjustable HD Track Bar
These new track bars are a massive upgrade to the factory unit, constructed from 1-3/8? solid steel stock reinforced with gusseted ends to handle whatever on-road and off-road abuse you can through at it. Adjustments are made at the 1-3/8?-12 fine threaded center turnbuckle with pinchbolt ends to allow easy tuning to properly recenter the front axle for a range of lift heights. The track bar is formed for proper clearance around critical front end components and is designed to easy installation without the need to clearance the factory frame and axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability. Parts come with a high quality textured black powdercoat finish for a great look and excellent corrosion resistance. The are designed for use on 0-3" of lift and can be used in combination with most aftermarket track bar brackets to be used on taller lift heights.
Carrier Bearing Drop Kit
A 2-piece rear drive shaft will require some extra work as the geometry of your drive system will now have some added stress. We recommend adding this carrier bearing drop to avoid any potential driveline vibration with the added lift height.
Description
If you're looking for a suspension upgrade for your 2019+ Ram 2500 with factory rear air suspension, this system from BDS Suspension is built not only to give you additional lift but also additional performance. These kits have been engineered for improved on-road comfort and offroad capability. Kits include high strength tubular radius arms, front and rear progressive rate coil springs, your choice of shocks, and steering correction, allowing clearance for up to 37" tires. As with all BDS Suspension systems these new 4" radius arm systems are backed by Factory Protection Plus for peace of mind wherever you choose to explore.
Up front these systems use a pair of progressive rate 4" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar along with extended polyurethane bump stops to correctly limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms are supplied to bolt in place of the factory arms. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.
At 4" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. In the rear, heavy duty air bag spacer brackets are used to level the stance along with a rear track bar bracket to correct axle positioning, extended length sway bar links, and bump stop extensions. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX2 series or FOX 2.0 shocks. Get the look and the ride you are after with these ne
As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these new 4" radius arm systems from BDS Suspension.
Shock Options:
Choose between custom valved BDS NX2 series or Fox 2.0 series gas charged monotube shocks to outfit the front and rear of your Ram.
NX2 Nitro Series - BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen charged, twin tube design with 10-stage velocity sensitive valving for lightning fast dampening and superior control.
This results in: increased stability for improved handling, longer front end and tire life, less nose dive on severe braking, less squat on hard acceleration, smoother ride control without harshness.
FOX 2.0 Performance Series - FOX 2.0 Performance series shocks have been tuned and tested by both Fox and BDS Suspension to maximize performance specific to each application and to every BDS Suspension system. The basic shock design is based on proven Fox Racing Shox race products, but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck or jeep, whether on or off the road.
Steering Stabilizer Options:
- Single NX2 Nitro: Are you worried about your steering control? NX2 Nitro Steering Stabilizer is designed to be a high-end performance shock at an affordable price. Built with a durable metallic finish, a large fluon-banded piston, and self-lubricating seals this stabilizer is tough enough to last but tuned with vehicle-specific valving to give you amazing control. Built with both the morning commute and some light off-roading in mind, keep stress out of your steer and install one of these today!
Front Adjustable HD Track Bar
These new track bars are a massive upgrade to the factory unit, constructed from 1-3/8? solid steel stock reinforced with gusseted ends to handle whatever on-road and off-road abuse you can through at it. Adjustments are made at the 1-3/8?-12 fine threaded center turnbuckle with pinchbolt ends to allow easy tuning to properly recenter the front axle for a range of lift heights. The track bar is formed for proper clearance around critical front end components and is designed to easy installation without the need to clearance the factory frame and axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability. Parts come with a high quality textured black powdercoat finish for a great look and excellent corrosion resistance. The are designed for use on 0-3" of lift and can be used in combination with most aftermarket track bar brackets to be used on taller lift heights.
Carrier Bearing Drop Kit
A 2-piece rear drive shaft will require some extra work as the geometry of your drive system will now have some added stress. We recommend adding this carrier bearing drop to avoid any potential driveline vibration with the added lift height.
