BD Xtrude Auxiliary Transmission Cooler

BD Xtrude Auxiliary Transmission Cooler

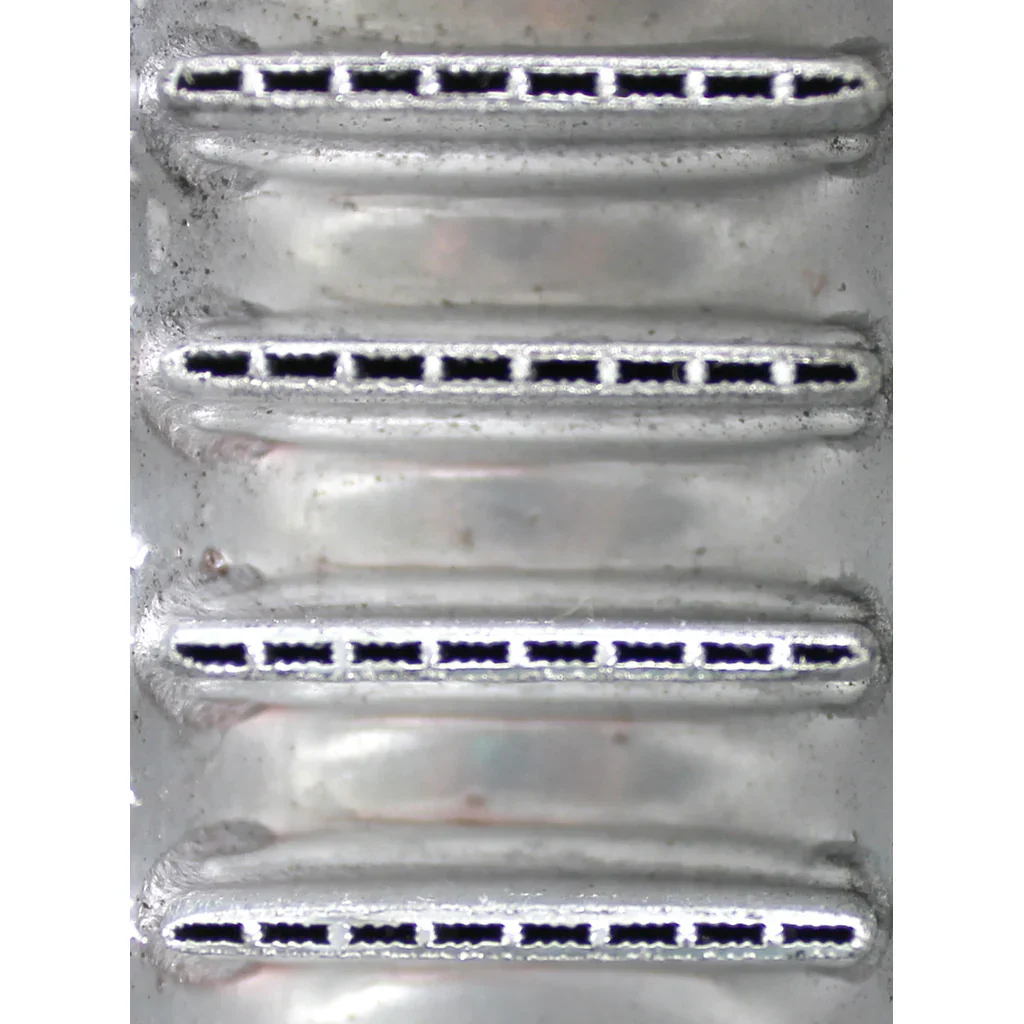

BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is found in their intercoolers, providing 22% more cooling over other designs. The 200 micro extruded passages provide a large surface area in a compact design that allows the transfer of to external air flow cooling, while a turbulent oil flow design promotes a more complete cooling.

Large 5/8" ports prevent restriction and furnace brazed rails have been tested to 300 PSI of pressure. The thermostatically controlled 80-watt, 10 inch, 800 CFM electric fan offers the ultimate in automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW!

PLEASE SELECT YOUR COOLER LINE SIZE FROM THE OPTIONS USING THE SUPPLIED CHART TO DETERMINE PROPER LINE SIZE.

VEHICLE APPLICATION CHART
Years Make Applications Fitting Tube Size
1999-2002 Ford 4R100 3/8" Tube
1994-1997 Ford E40D 5/16" Tube
1999-2000 GM 4L80 3/8" Tube
1991-1999 GM 4L60 5/16" Tube
1993-2026 Dodge 47RH/RE,48RE,68RFE 1/2" Tube
2001-2010 GM Allison 1000 5/8" Tube
2003-2010 Ford 5R110 1/2" Tube
Select Select Your Cooler Kit
From $106.48

Original: $354.95

-70%
BD Xtrude Auxiliary Transmission Cooler—

$354.95

$106.48
Product image 1
Product image 2

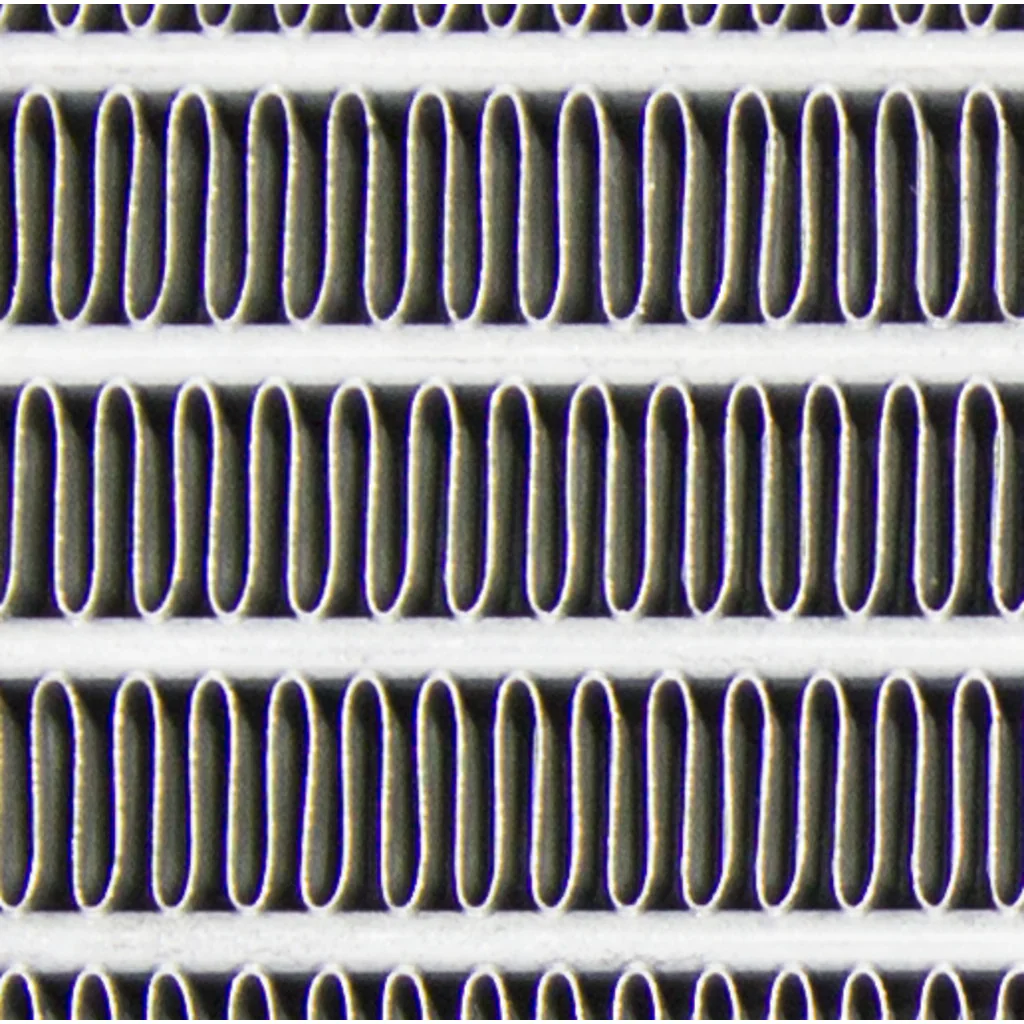

Product image 3

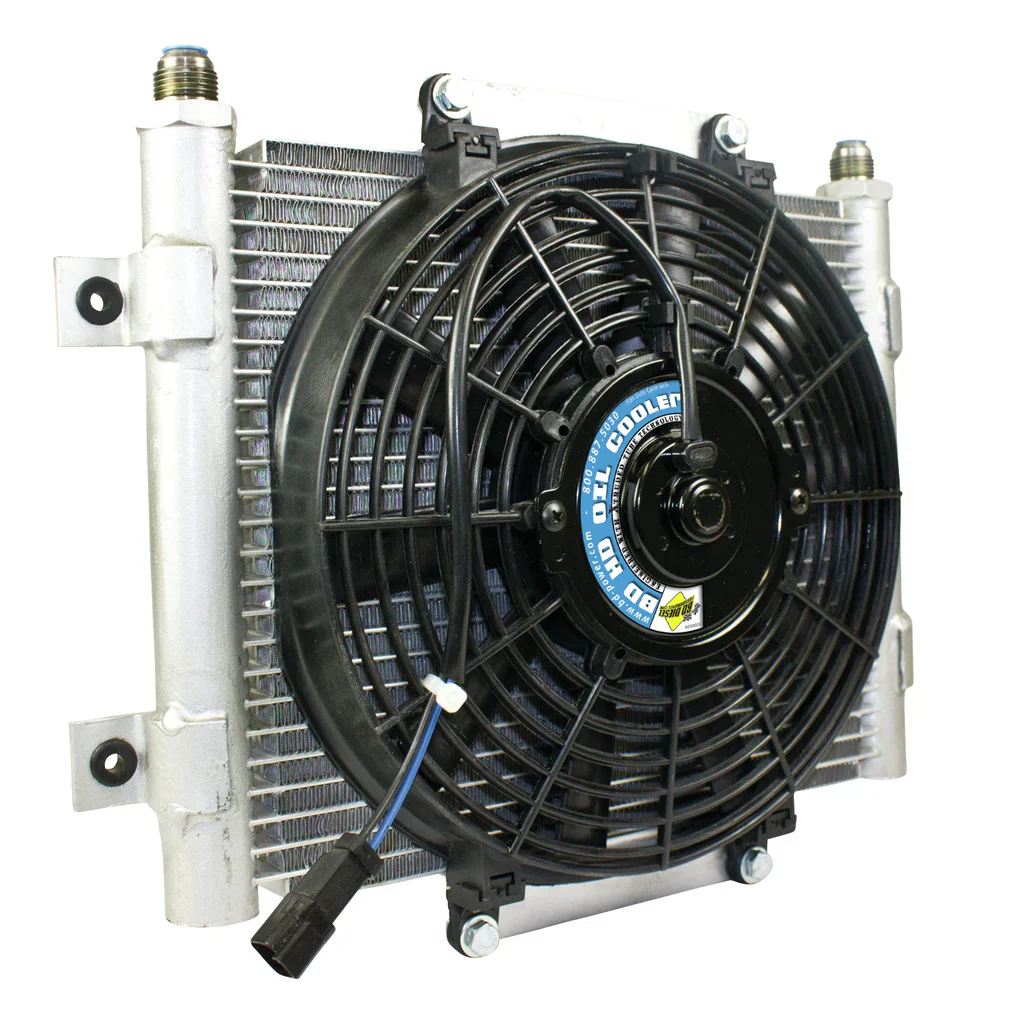

Product image 4
Product image 5
Product image 6

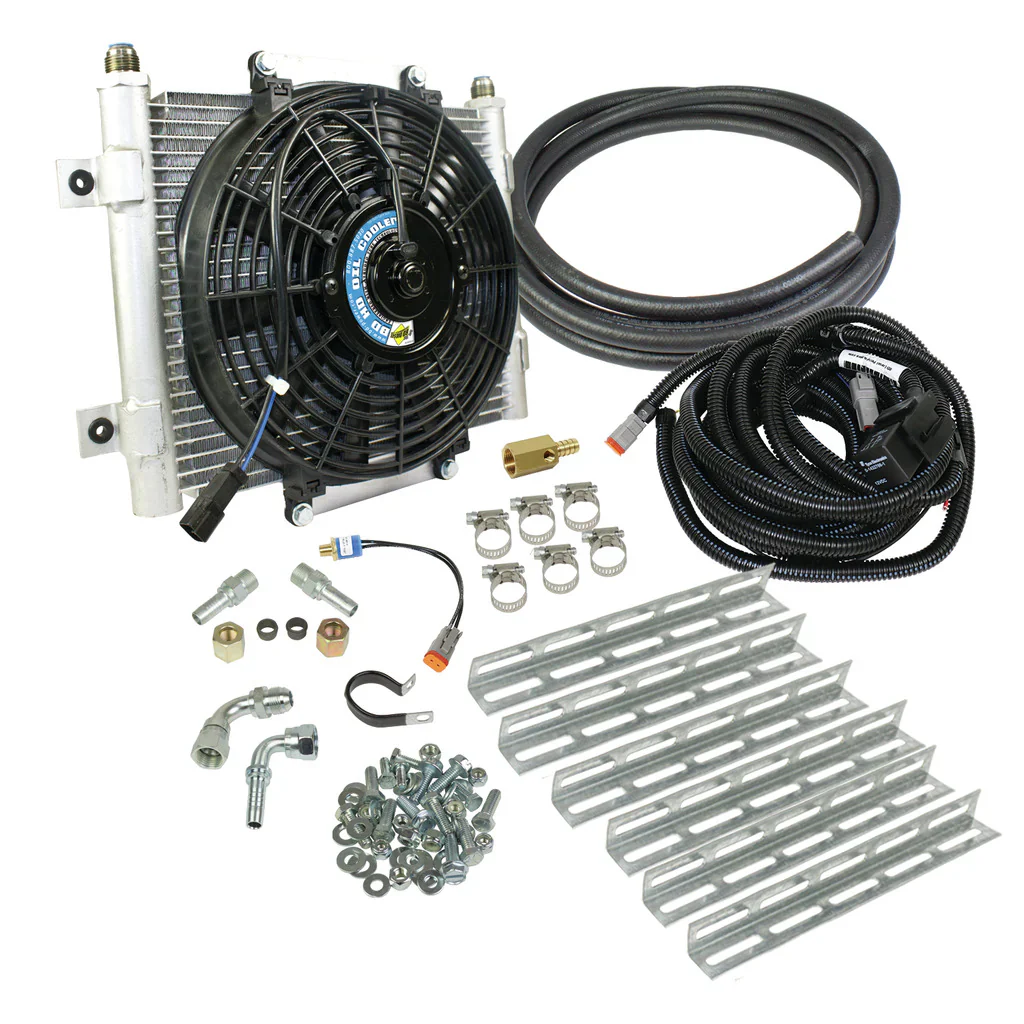

Product image 7
Product image 8

Description

BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is found in their intercoolers, providing 22% more cooling over other designs. The 200 micro extruded passages provide a large surface area in a compact design that allows the transfer of to external air flow cooling, while a turbulent oil flow design promotes a more complete cooling.

Large 5/8" ports prevent restriction and furnace brazed rails have been tested to 300 PSI of pressure. The thermostatically controlled 80-watt, 10 inch, 800 CFM electric fan offers the ultimate in automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW!

PLEASE SELECT YOUR COOLER LINE SIZE FROM THE OPTIONS USING THE SUPPLIED CHART TO DETERMINE PROPER LINE SIZE.

VEHICLE APPLICATION CHART
Years Make Applications Fitting Tube Size
1999-2002 Ford 4R100 3/8" Tube
1994-1997 Ford E40D 5/16" Tube
1999-2000 GM 4L80 3/8" Tube
1991-1999 GM 4L60 5/16" Tube
1993-2026 Dodge 47RH/RE,48RE,68RFE 1/2" Tube
2001-2010 GM Allison 1000 5/8" Tube
2003-2010 Ford 5R110 1/2" Tube
