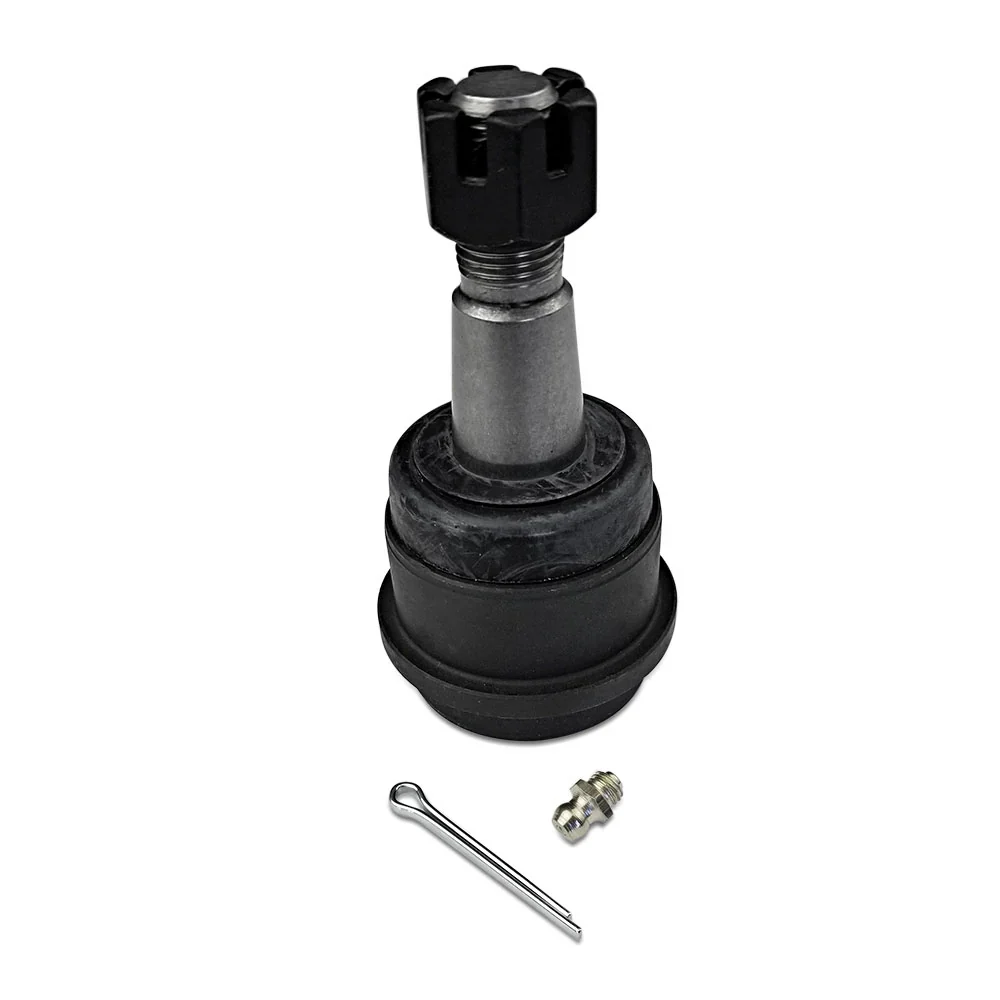

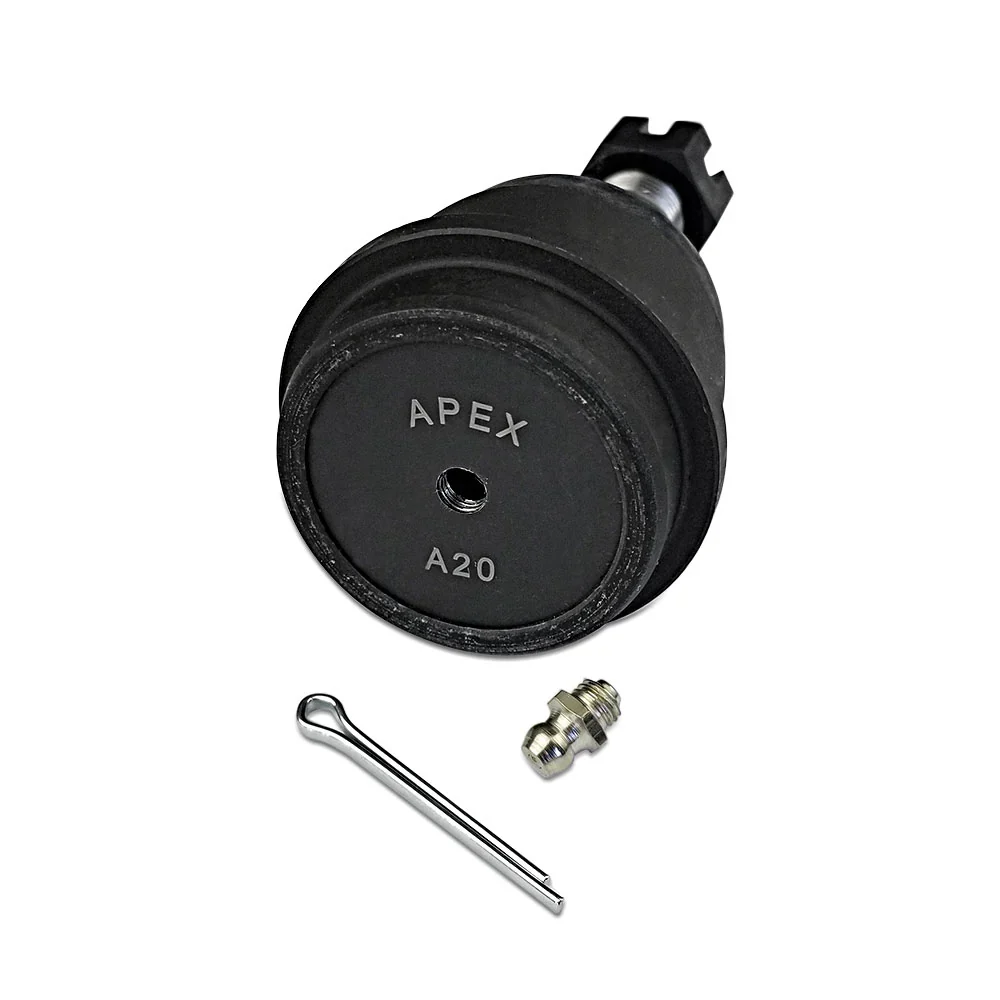

Apex Chassis Upper Ball Joint 00-02 Dodge Ram 2500 / 3500

If you own a 2000–2002 Dodge Ram 2500 or 3500, you already know the front suspension takes a beating, especially if your truck’s running big tires, a plow, or towing heavy loads. The factory ball joints simply aren’t built for the kind of punishment that real work trucks and off-road rigs dish out. That’s where the Apex Chassis Upper Ball Joint comes in.

Engineered for long life, precise steering, and unbeatable durability, this heavy-duty joint is designed to restore control and eliminate front-end slop that can lead to uneven tire wear, wandering steering, or even the dreaded front-end shake.

HOUSING

• SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
• CNC Machined Housing: Makes our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

• SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
• Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
• Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
• Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
• Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

• Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

• CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids, and extreme heat or cold.
• Internal Seal Boot: The boot is coined onto the ball joint for superior sealing against contaminants.

FINISH

• E-Coating: Extremely durable electrochemical finishing process.

HARDWARE

• Grade 8 - Class 10.9 Hardware: Superior tensile strength.
• Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

• Pre-threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting, you will understand what a simple but great feature this is. Another installer favorite.
• Greaseable: Because it should be.
• Pre-Greased: Just in case you forget, we have you covered.
• Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
• Zerk Fittings: Included for every application.
